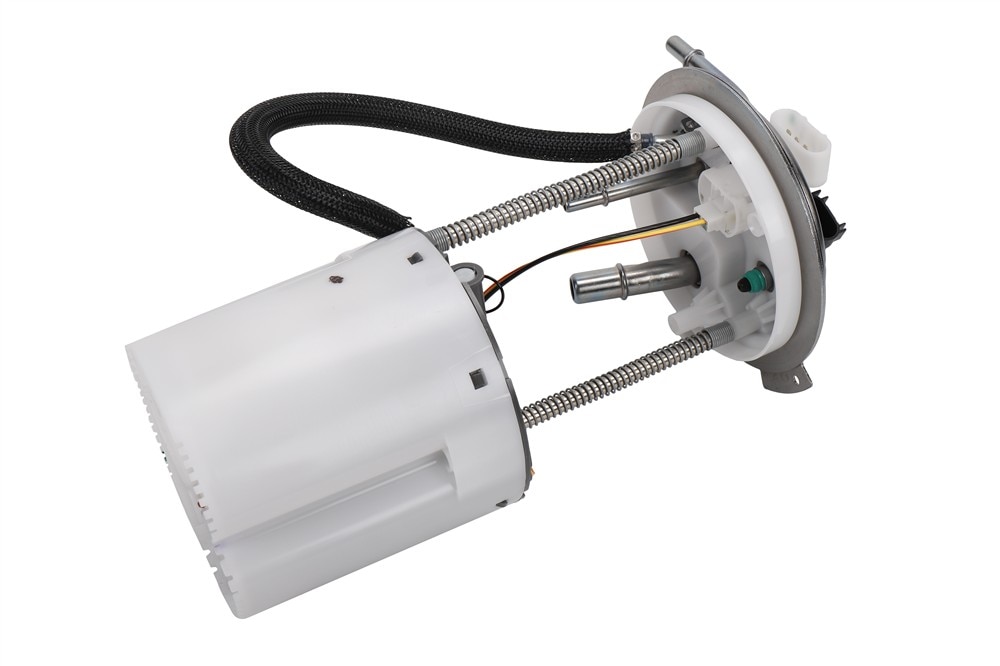

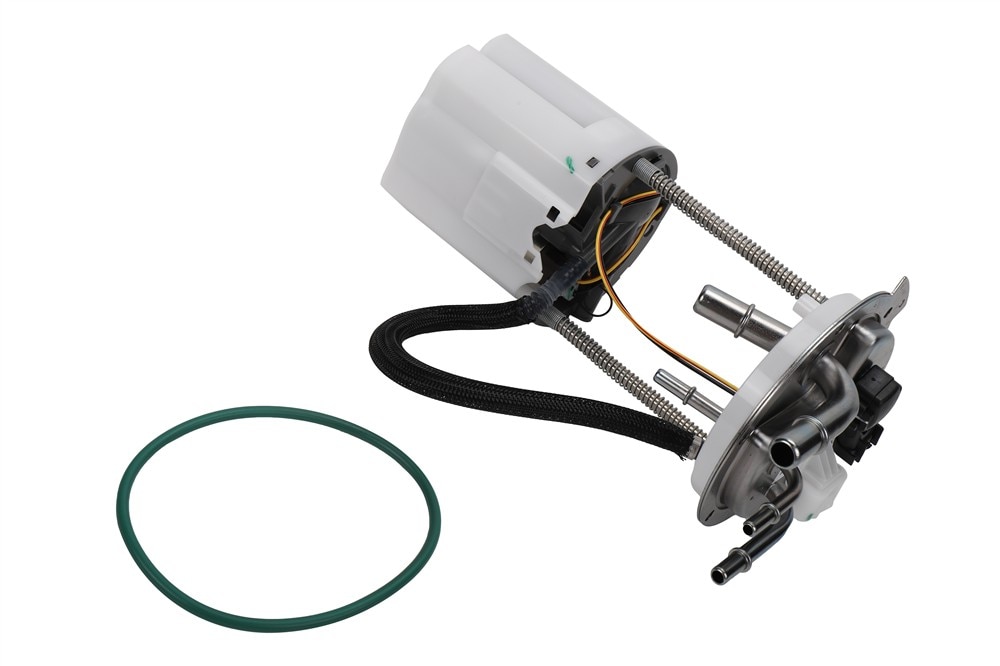

GM Genuine Parts Fuel Pump Module without Fuel Level Sensor, with Pressure Sensor and Seal
OE

GM Genuine Parts Fuel Pump Module without Fuel Level Sensor, with Pressure Sensor and Seal

GM Part #19368768

ACDelco Part #M100125

MSRP$781.46*

GM Genuine Parts Fuel Pump Module Assemblies are designed, engineered, and tested to rigorous standards, and are backed by General Motors.

  • Helps provide a reliable fuel supply to your vehicle's engine
  • Electrical connections are designed to help eliminate high resistance due to vehicle vibration
  • Designed to optimize pump life and reduce fuel pump noise

About this product

GM Genuine Parts Fuel Pump Module Assemblies are designed, engineered, and tested to rigorous standards, and are backed by General Motors. These module assemblies help deliver fuel to your vehicle's fuel injectors, providing a steady, reliable fuel supply to your vehicle's engine. GM Genuine Parts are the true OE parts installed during the production of or validated by General Motors for GM vehicles. Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE).

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • Helps provide a reliable fuel supply to your vehicle's engine
  • Electrical connections are designed to help eliminate high resistance due to vehicle vibration
  • Designed to optimize pump life and reduce fuel pump noise
  • Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE)
  • GM Genuine Parts are designed, engineered and tested to rigorous standards, and are backed by General Motors.
  • GM Engineers design and validate OE parts specifically for your Chevrolet, Buick, GMC, or Cadillac vehicle
  • GM regularly updates production and service part designs to integrate new materials and technologies

Housing MaterialPlastic
Outlet Quantity1
Terminal TypeBlade
Mounting Hardware IncludedNo
Gasket Or Seal IncludedYes
Universal Or Specific FitSpecific
Width14.2in
Terminal Quantity7

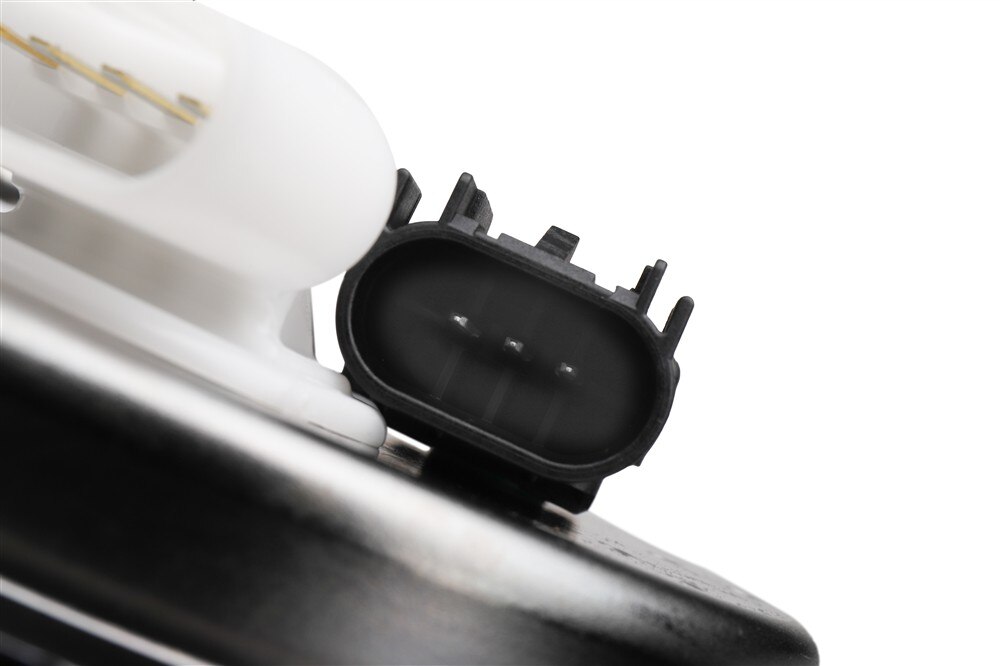

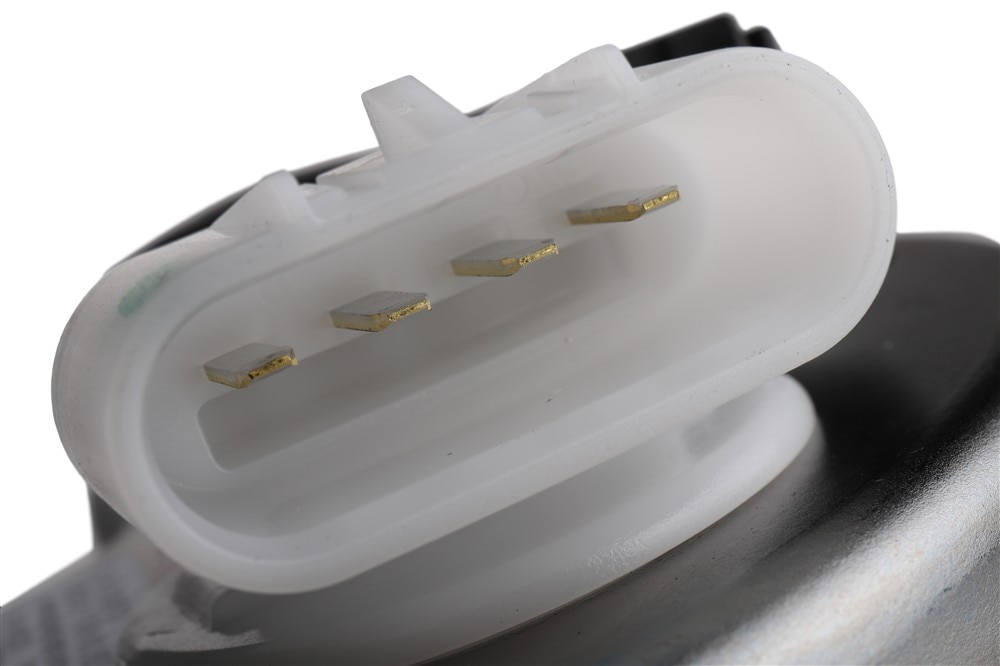

Connector ShapeOval
Wire Harness IncludedNo
Length6in
Height4.3 in / 221 mm
ClassificationOE
Top Mount Diameter5.984 in / 152 mm
Outlet Outside Diameter0.374 in / 9.49 mm
Connector GenderFemale
Voltage12DC
Terminal GenderMale
Fuel TypeGas
Lock Ring IncludedNo
Outlet TypeMale Quick-Connect
Fuel Sending Unit IncludedNo
In Tank or ExternalIn Tank
Pump TypeElectric
Negative GroundYes
Regulator IncludedNo

Limited Lifetime Warranty for Parts (plus Labor if installed by a GM dealer)

Please visit our warranty page on Gmparts.com for full warranty details.

Good Maintenance Practices:

  • Fuel contamination is one of the top reasons for fuel pump failure. For proper operation and longevity, it is critical to have a clean fuel system.
  • When servicing a fuel pump, always replace the strainer, and inspect the inline fuel filter for contamination (if equipped).
  • Before replacing a fuel pump, check for proper electrical connections, pressure, and volume.
  • Make a service appointment if your vehicle shows any of the following symptoms: 'Service Engine Soon' light is illuminated, improper engine idling, hesitation, or stalling, excessive exhaust smoke, abnormal engine noises, or noticeable fuel odors.
  • Refer to your Vehicle Owner's manual for additional vehicle maintenance practices.

Troubleshooting Tips:

  • Excessive noise
  • Fuel gauge reading incorrectly

ModelBody StyleTrimYear(s)
Escalade2008, 2009, 2010, 2011, 2012, 2013

Frequently Asked Questions

Yes. Refer to a parts catalog for specific applications.

Yes. GM Original Equipment fuel pumps have gone through the same rigorous testing and meet the specifications of the production pump your vehicle was built with.

No. Noise, exhaust smoke, warning lights, hard starting, stalling, and hesitation can all be signs of a failing fuel pump. However, it is also possible that none of these signs could be present.

Yes. Inspecting fuel pressure and/or examining engine data and codes with a scan tool can help determine potential concerns.

Yes. It is good practice to refuel with high quality fuel from well known, high volume, trusted fuel stations whenever possible.

Yes. Special tools may be required, e.g., a wire connector crimper, fuel pressure gauge, and lock ring removal tool.
