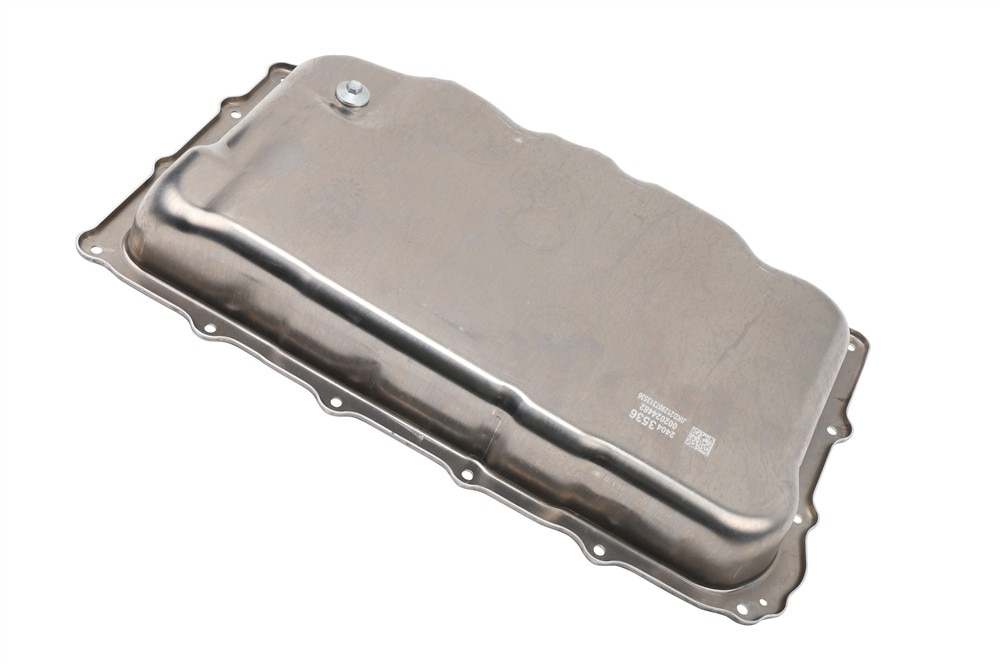

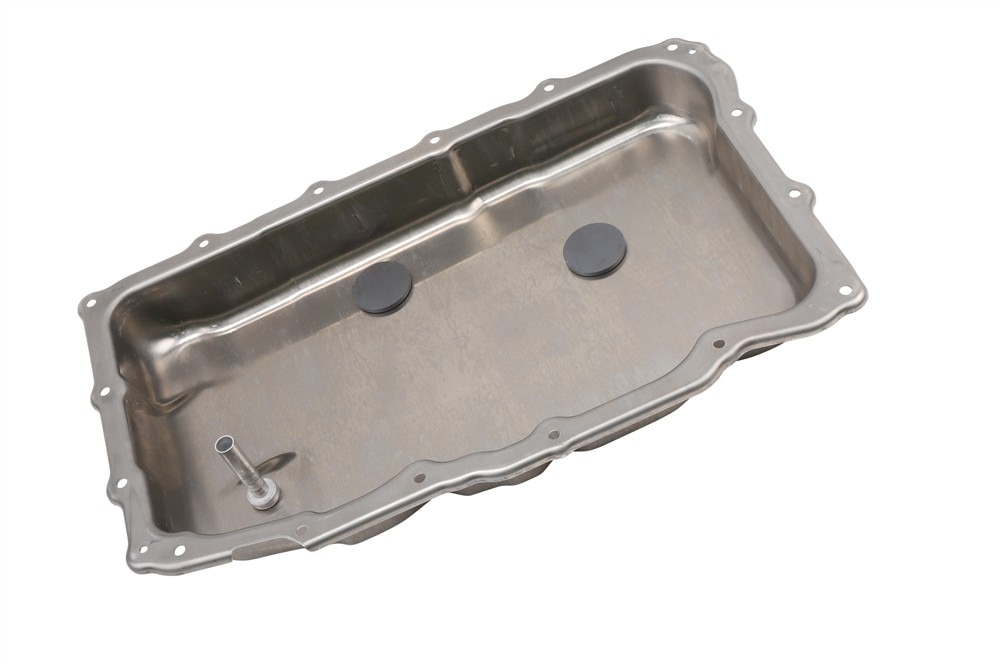

GM Genuine Parts Automatic Transmission Fluid Pan
GM Part #24043536
ACDelco Part #24043536
About this product
ACDelco GM Original Equipment Transmission Oil Pans are designed, engineered, and tested to rigorous standards, and are backed by General Motors. ACDelco GM Original Equipment parts are the true OE parts installed during the production of or validated by General Motors for GM vehicles. Some ACDelco GM Original Equipment parts may have formerly appeared as GM Genuine Parts (OE) or ACDelco Professional.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Some ACDelco GM Original Equipment parts may have formerly appeared as GM Genuine Parts (OE) or ACDelco Professional
- ACDelco GM Original Equipment parts are designed, engineered and tested to rigorous standards, and are backed by General Motors.
- GM Engineers design and validate OE parts specifically for your Chevrolet, Buick, GMC, or Cadillac vehicle
- GM regularly updates production and service part designs to integrate new materials and technologies
Gasket Or Seal IncludedNo
Mounting Hardware IncludedYes
Thickness0.06 in / 1.6 mm
Width12.34 in / 313.67 mm
Mounting Hole Quantity16
Mounting Hole Diameter0.28 in / 7.2 mm
ClassificationOE
Length19.91 in / 505.86 mm
MaterialAluminum
Maximum Width12.34 in / 313.67 mm
Drain Plug IncludedNo
Dipstick PortNo
FinishUncoated
Maximum Depth3.13 in / 79.64 mm
Minimum Depth2.32 in / 59.02 mm
Oil Pan Gaskets IncludedNo
Transmission Filter IncludedNo
Grade TypeStandard Replacement
Gasket Or Seal IncludedNo
Thickness0.06 in / 1.6 mm
Mounting Hole Quantity16
ClassificationOE
MaterialAluminum
Drain Plug IncludedNo
FinishUncoated
Minimum Depth2.32 in / 59.02 mm
Transmission Filter IncludedNo
Mounting Hardware IncludedYes
Width12.34 in / 313.67 mm
Mounting Hole Diameter0.28 in / 7.2 mm
Length19.91 in / 505.86 mm
Maximum Width12.34 in / 313.67 mm
Dipstick PortNo
Maximum Depth3.13 in / 79.64 mm
Oil Pan Gaskets IncludedNo
Grade TypeStandard Replacement
24 Months/Unlimited Miles Limited Warranty for Parts (plus Labor if installed by a GM dealer)
