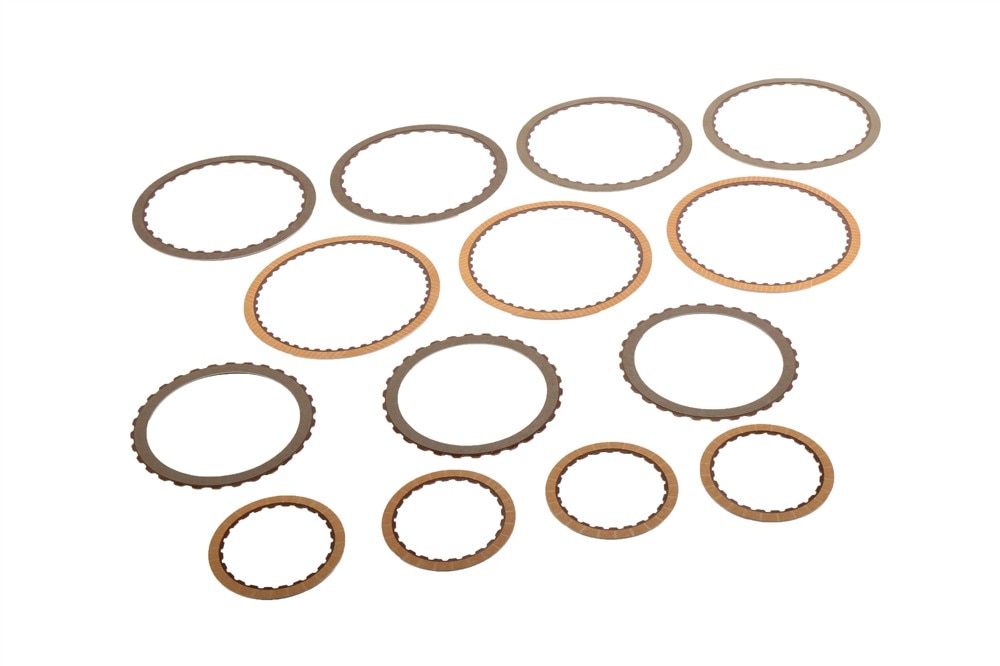

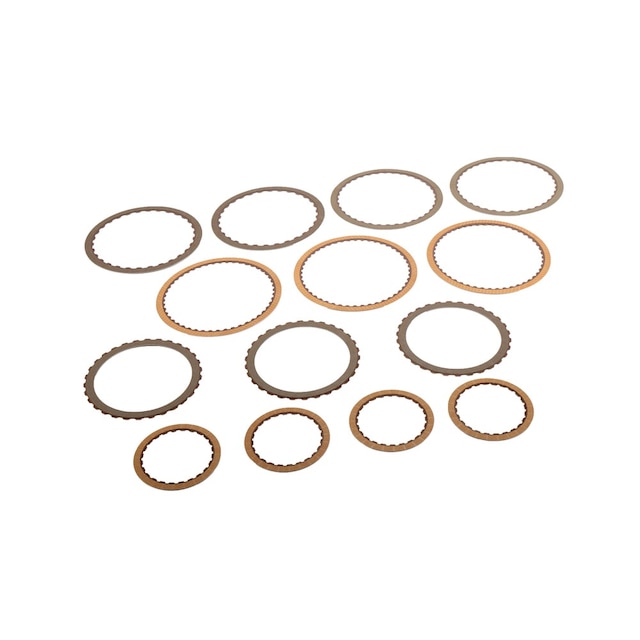

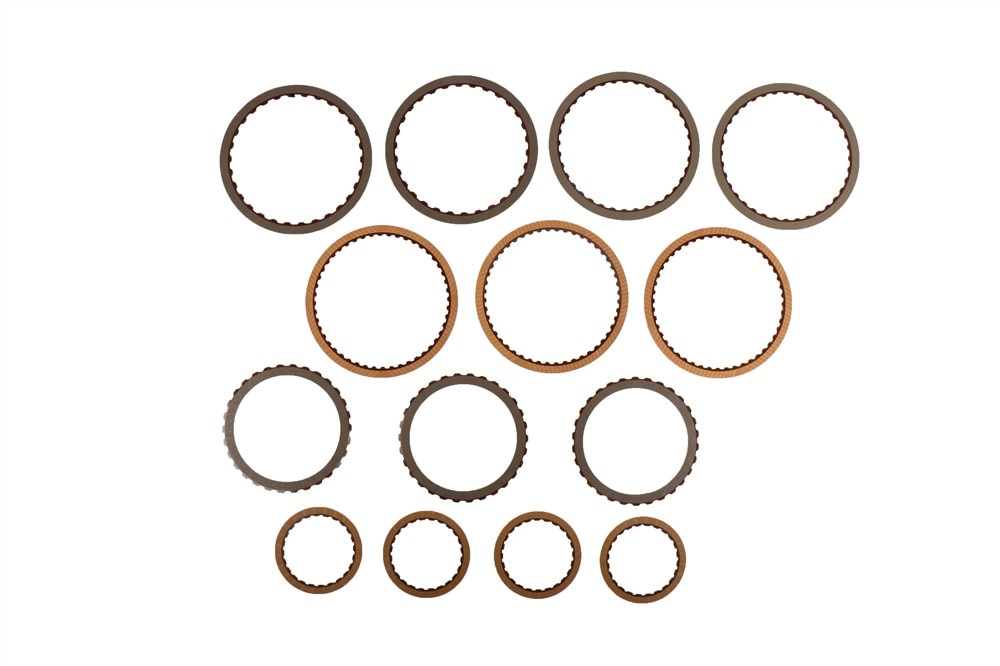

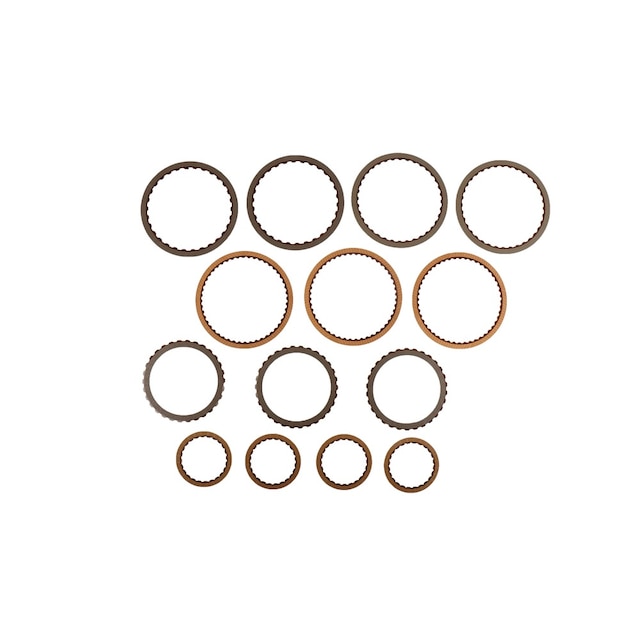

GM Genuine Parts Automatic Transmission Clutch Plate Kit with Friction Plates
GM Part #24261223
ACDelco Part #24261223
About this product
ACDelco GM Original Equipment Automatic Transmission Clutch Plate Kit contains GM-recommended replacement components for one or more of the following vehicle systems: automatic transmission/transaxle, and/or manual drivetrain and axles. This original equipment kit contains components that will provide the same performance, durability, and service life you expect from General Motors.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- GM-recommended replacement part for your GM vehicle's original factory component
- Offering the quality, reliability, and durability of GM OE
- Manufactured to GM OE specification for fit, form, and function
Product Specifications
ClassificationOE
Clutch 4 Friction Material Thickness0.014 in / 0.35 mm
Clutch 2 Friction Material Thickness0.016 in / 0.41 mm
Clutch 3 Friction Material Thickness0.016 in / 0.41 mm
Clutch 5 Friction Material Thickness0.016 in / 0.41 mm
Clutch Plate 5 Inside Diameter3.381 in / 85.87 mm
Clutch Plate 5 Outside Diameter4.331 in / 110.00 mm
Clutch Plate 2 Inside Diameter5.276 in / 134.00 mm
Clutch Plate 2 Outside Diameter6.407 in / 162.73 mm
Clutch Plate 3 Inside Diameter6.477 in / 164.51 mm
Clutch Plate 1 Inside Diameter6.513 in / 165.44 mm
Clutch 1 Friction Material Thickness0.016 in / 0.41 mm
Clutch Plate 4 Inside Diameter6.525 in / 165.74 mm
Clutch Plate 1 Outside Diameter7.638 in / 194.00 mm
Clutch Plate 3 Outside Diameter7.717 in / 196.00 mm
Clutch Plate 4 Outside Diameter7.717 in / 196.00 mm
Friction MaterialDouble Sided Wet Clutch
ClassificationOE
Clutch 2 Friction Material Thickness0.016 in / 0.41 mm
Clutch 5 Friction Material Thickness0.016 in / 0.41 mm
Clutch Plate 5 Outside Diameter4.331 in / 110.00 mm
Clutch Plate 2 Outside Diameter6.407 in / 162.73 mm
Clutch Plate 1 Inside Diameter6.513 in / 165.44 mm
Clutch Plate 4 Inside Diameter6.525 in / 165.74 mm
Clutch Plate 3 Outside Diameter7.717 in / 196.00 mm
Friction MaterialDouble Sided Wet Clutch
Clutch 4 Friction Material Thickness0.014 in / 0.35 mm
Clutch 3 Friction Material Thickness0.016 in / 0.41 mm
Clutch Plate 5 Inside Diameter3.381 in / 85.87 mm
Clutch Plate 2 Inside Diameter5.276 in / 134.00 mm
Clutch Plate 3 Inside Diameter6.477 in / 164.51 mm
Clutch 1 Friction Material Thickness0.016 in / 0.41 mm
Clutch Plate 1 Outside Diameter7.638 in / 194.00 mm
Clutch Plate 4 Outside Diameter7.717 in / 196.00 mm
24 Months/Unlimited Miles Limited Warranty for Parts (plus Labor if installed by a GM dealer)
Please visit our warranty page on Gmparts.com for full warranty details.
