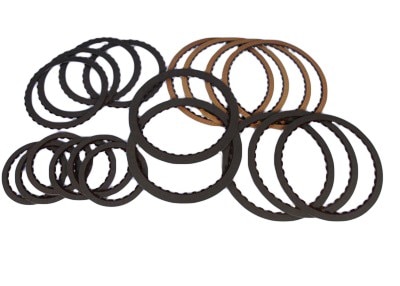

GM Genuine Parts Automatic Transmission Clutch Plate Kit with Friction Plates
GM Part #24240100
ACDelco Part #24240100
About this product
ACDelco GM Original Equipment Automatic Transmission Clutch Plate Kit contains GM-recommended replacement components for one or more of the following vehicle systems: automatic transmission/transaxle, and/or manual drivetrain and axles. This original equipment kit contains components that will provide the same performance, durability, and service life you expect from General Motors.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- GM-recommended replacement part for your GM vehicle's original factory component
- Offering the quality, reliability, and durability of GM OE
- Manufactured to GM OE specification for fit, form, and function
Product Specifications
Length12.75in
Height2.25in
ClassificationOE
Clutch 5 Friction Material Thickness0.016 in / 0.41 mm
Clutch 1 Friction Material Thickness0.016 in / 0.41 mm
Clutch 4 Friction Material Thickness0.016 in / 0.41 mm
Clutch 3 Friction Material Thickness0.016 in / 0.41 mm
Clutch Plate 3 Inside Diameter6.571 in / 166.90 mm
Clutch Plate 5 Inside Diameter6.849 in / 173.96 mm
Clutch Plate 4 Inside Diameter6.906 in / 175.40 mm
Clutch Plate 1 Inside Diameter7.423 in / 188.55 mm
Clutch Plate 3 Outside Diameter8.189 in / 208.00 mm
Clutch Plate 4 Outside Diameter8.236 in / 209.20 mm
Clutch Plate 1 Outside Diameter8.622 in / 219.00 mm
Clutch Plate 5 Outside Diameter0.622 in / 15.80 mm
Clutch Plate 2 Inside Diameter3.684 in / 93.58 mm
Clutch Plate 2 Outside Diameter4.764 in / 121.00 mm
Width9.25in
Friction MaterialDouble Sided Wet Clutch
Length12.75in
ClassificationOE
Clutch 1 Friction Material Thickness0.016 in / 0.41 mm
Clutch 3 Friction Material Thickness0.016 in / 0.41 mm
Clutch Plate 5 Inside Diameter6.849 in / 173.96 mm
Clutch Plate 1 Inside Diameter7.423 in / 188.55 mm
Clutch Plate 4 Outside Diameter8.236 in / 209.20 mm
Clutch Plate 5 Outside Diameter0.622 in / 15.80 mm
Clutch Plate 2 Outside Diameter4.764 in / 121.00 mm
Friction MaterialDouble Sided Wet Clutch
Height2.25in
Clutch 5 Friction Material Thickness0.016 in / 0.41 mm
Clutch 4 Friction Material Thickness0.016 in / 0.41 mm
Clutch Plate 3 Inside Diameter6.571 in / 166.90 mm
Clutch Plate 4 Inside Diameter6.906 in / 175.40 mm
Clutch Plate 3 Outside Diameter8.189 in / 208.00 mm
Clutch Plate 1 Outside Diameter8.622 in / 219.00 mm
Clutch Plate 2 Inside Diameter3.684 in / 93.58 mm
Width9.25in
24 Months/Unlimited Miles Limited Warranty for Parts (plus Labor if installed by a GM dealer)
Please visit our warranty page on Gmparts.com for full warranty details.
