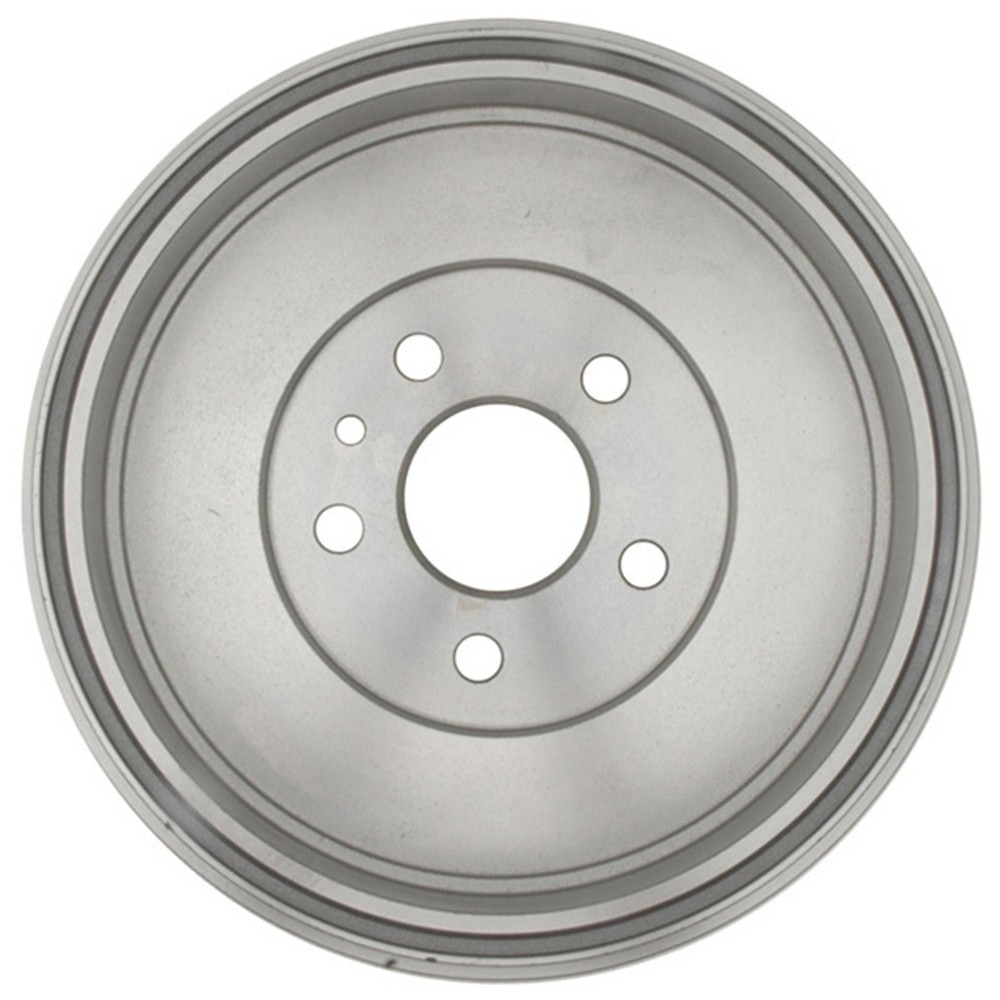

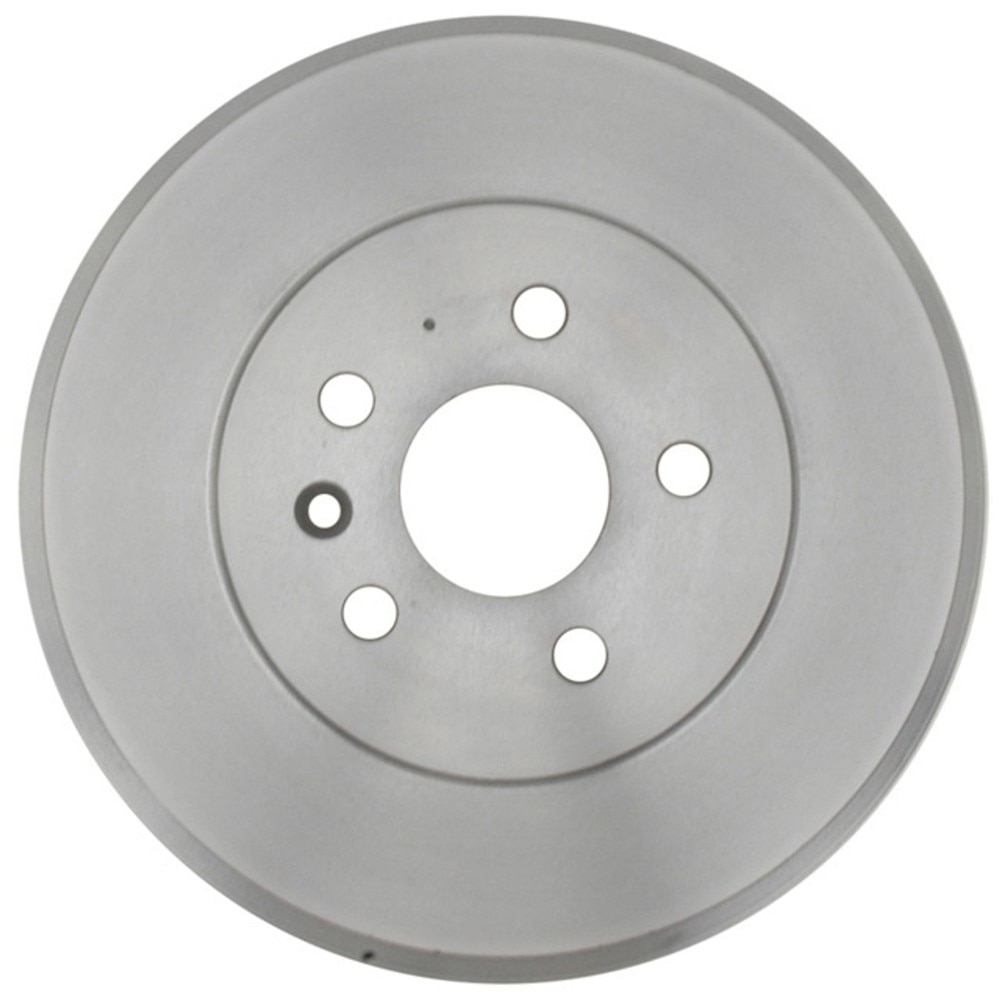

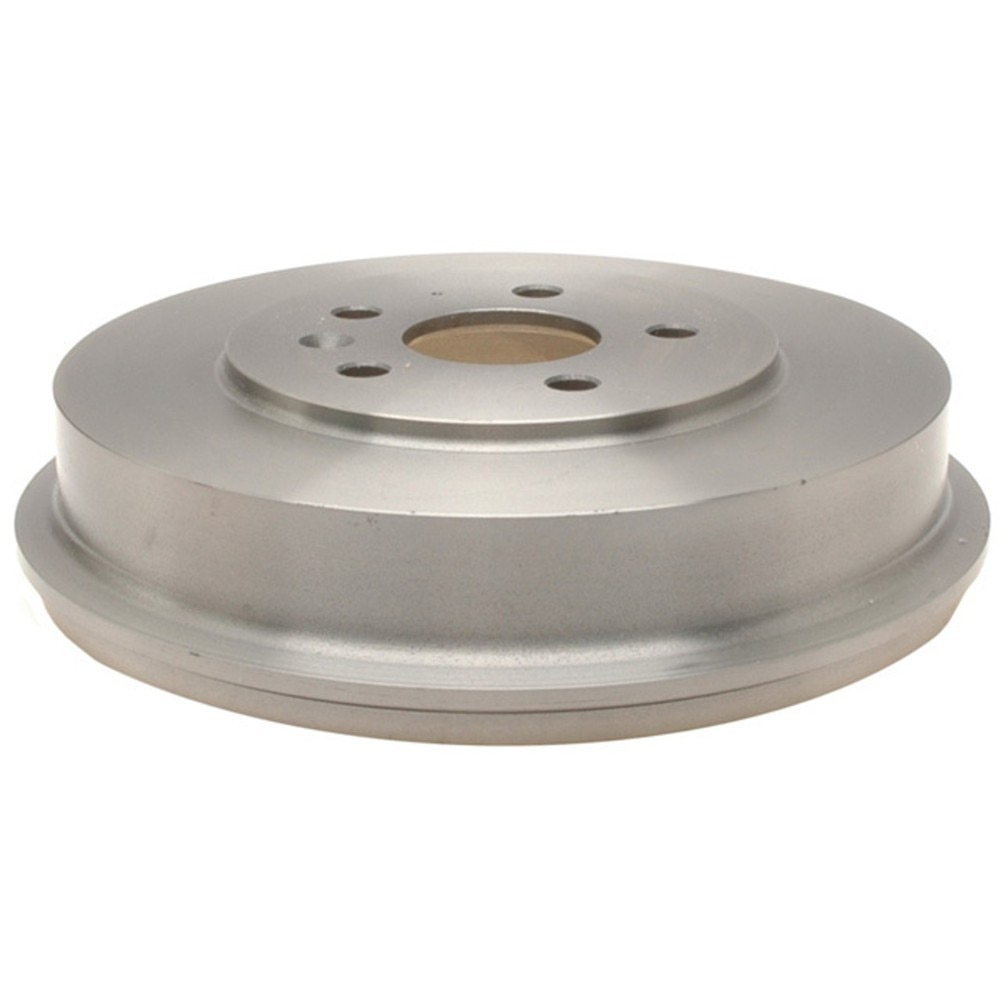

ACDelco Gold Rear Brake Drum
Gold
Pack of 1

ACDelco Gold Rear Brake Drum

GM Part #19292983

ACDelco Part #18B601

MSRP$124.68*

ACDelco Professional Brake Drums are constructed with G3000 SAE qualified material for structural integrity and maximum service life.

  • Inspected for balance; resulting in smooth brake operation and noise reduction
  • Independently tested with Noise/Vibration/Harshness (NVH) and durability/wear testing; resulting in high quality and reliable products
  • Follows original manufacturers' designs for dispersing heat, helping to prolong pad and rotor life while reducing noise and vibration

Pack of 1

About this product

ACDelco Professional Brake Drums are constructed with G3000 SAE qualified material for structural integrity and maximum service life. They are tested to ISO/TS 16949 quality system standards and validated for balance to provide better braking performance. Chamfer angle, vane configuration, and plate thickness all follow the OE design, making them a premium aftermarket replacement for your GM and non-GM vehicle. Also, no machining is required. ACDelco Professional Brake Drums are ready to be installed right out of the box.

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • Inspected for balance; resulting in smooth brake operation and noise reduction
  • Independently tested with Noise/Vibration/Harshness (NVH) and durability/wear testing; resulting in high quality and reliable products
  • Follows original manufacturers' designs for dispersing heat, helping to prolong pad and rotor life while reducing noise and vibration

MaterialCast Iron
ABS Sensor Ring IncludedNo
Bolt Hole Quantity5
Inside Diameter10 in / 254 mm
Depth1.984 in / 50.4 mm
Nominal Drum Diameter10 in / 254 mm
ClassificationGold
Maximum Brake Diameter (Discard)256.03mm
Outside Diameter0.462 in / 11.75 mm
Weight16.1lb
Stud/Lug Hole Diameter0.557 in / 14.15 mm
Outer Cooling FinsNo
Brake Surface FinishTurned

24 Months/Unlimited Miles Limited Warranty for Parts (plus Labor if installed by a GM dealer)

Please visit our warranty page on Gmparts.com for full warranty details.

The following should be conducted by a qualified technician:

  • Check brake fluid level at every oil change. Replace fluid according to owner's manual recommendations.
  • Calipers and wheel cylinders should be checked every brake inspection and serviced or replaced as required.
  • Inspect the brake lines for rust, punctures, or visible leaks (You may be able to do this, but consult a qualified technician if necessary).
  • Check the thickness of your brake pads.
  • Inspection of the brake hoses for brittleness or cracking.
  • Inspection of brake lining and pads for wear or contamination by brake fluid or grease.
  • Inspection of wheel bearings and grease seals.
  • Parking brake adjustments (as needed).

Troubleshooting Tips:

  • Squealing or scraping noises.
  • Brake pedal pulsation (not to be confused with normal ABS operation).

ModelBody StyleTrimYear(s)
Cruze2011, 2012, 2013, 2014, 2015
Cruze Limited2016

Frequently Asked Questions

No, but it is a good idea to inspect them for wear-out, cracking, leaking etc.

Yes, ACDelco also offers GM OE and Advantage brake drums.

No, but it is a good idea to inspect them at every tire rotation.
