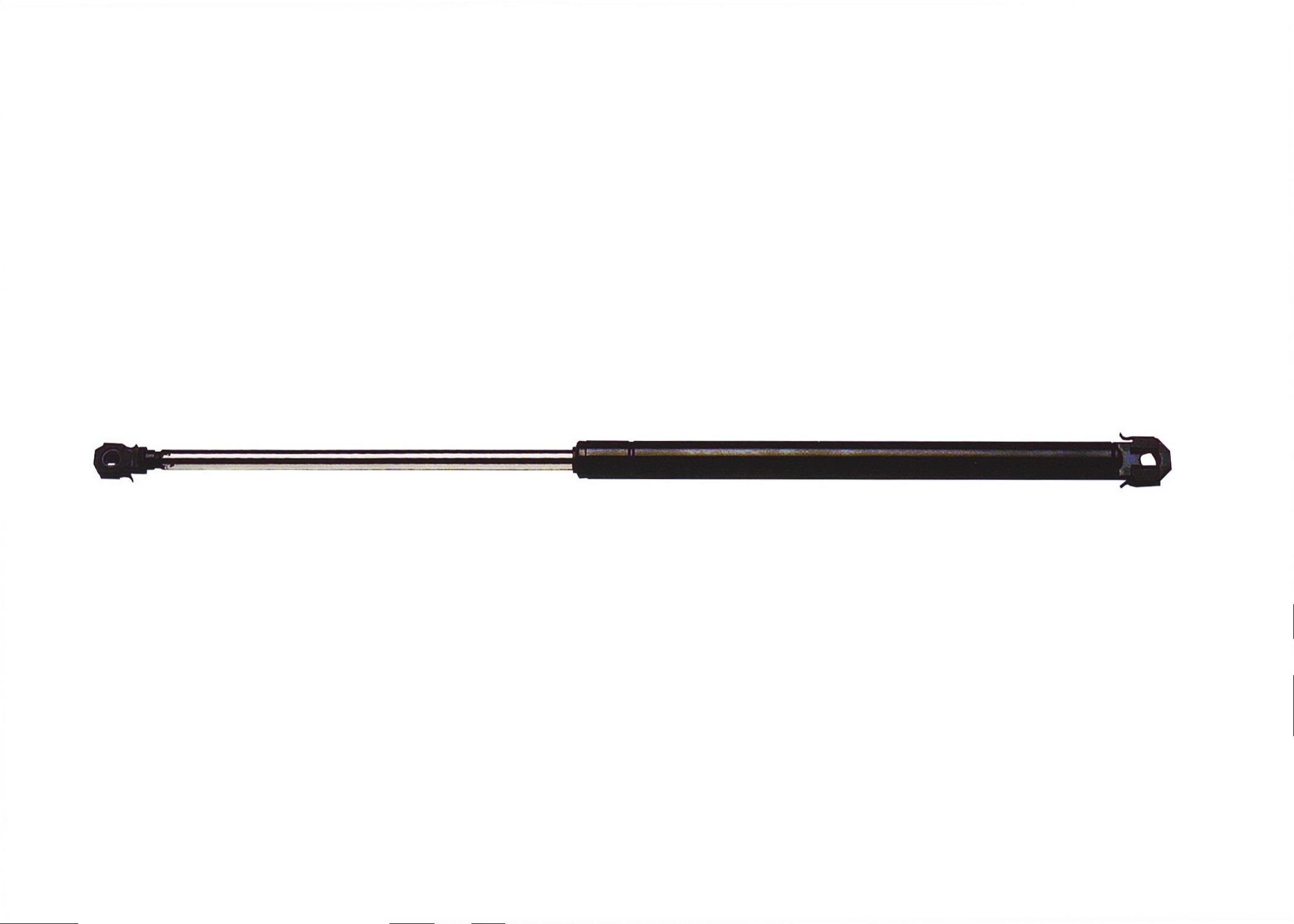

ACDelco Gold Hood Lift Support
Gold
Pack of 1

ACDelco Gold Hood Lift Support

GM Part #12362239

ACDelco Part #510-330

MSRP$66.32*

ACDelco Professional Lift Supports are the ideal replacements for your worn out lift support struts.

  • High quality seals keep lift support fluids and gases contained within the strut components, resulting in extended product life
  • Chromed rod increases rust and corrosion resistance for a higher quality, longer lasting, lift support
  • Rubber O-ring piston seal for controlled lift

Pack of 1

About this product

ACDelco Professional Lift Supports are the ideal replacements for your worn out lift support struts. The pressurized, gas charged cylinders feature chromed rods and superior seals for a lasting, quality lift support replacement. Each lift support is custom engineered and manufactured to top industry standards with self-cleaning piston technology and a patented multi-lobe sealing system. ACDelco Professional Lift Supports are easy to install with simple hand tools in just minutes.

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • High quality seals keep lift support fluids and gases contained within the strut components, resulting in extended product life
  • Chromed rod increases rust and corrosion resistance for a higher quality, longer lasting, lift support
  • Rubber O-ring piston seal for controlled lift
  • Heavy gauge steel pressure tube provides long life
  • Polytetrafluroethylene (PTFE) backup ring gives enhanced performance
  • Patented multi-lobe seal offers improved leak protection and long life
  • Self-cleaning piston assembly delivers smooth operation and consistent performance

Universal Or Specific FitSpecific
Outer Cylinder MaterialSteel
Outer Cylinder ColorBlack
Dampening TypeGas
ClassificationGold
Compressed Length15.1 in / 383.5 mm
Maximum Force81 lb / 36.7 kg
Minimum Force142 kg / 314 lb
Inner Shaft Diameter0.314 in / 8 mm
Cylinder Outside Diameter22mm
End 1 TypeBlade w/Retainer
Extended Length23.91in
Stroke Length8.81in
End 2 TypeBlade w/Retainer

24 Months/Unlimited Miles Limited Warranty for Parts (plus Labor if installed by a GM dealer)

Please visit our warranty page on Gmparts.com for full warranty details.

It is recommended to replace your lift supports in pairs to ensure the performance and safety of the related component, such as your hood, hatchback, or liftgate.

  • Periodically clean the surface of the rod with a dry, soft cloth.
  • Do not use oil, silicone, adhesives, or anything that might leave a sticky residue on the rod, which could ultimately attract dust or dirt.
  • Avoid anything that could scratch the rod, such as clamps or clips.
  • Avoid abrasive household cleaners, as they can scratch the rod as well.

ModelBody StyleTrimYear(s)
Eldorado1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
Seville1992, 1993, 1994, 1995, 1996

Frequently Asked Questions

Yes. To achieve maximum product performance and service life, it is recommended to mount your lift strut 'shaft down'
