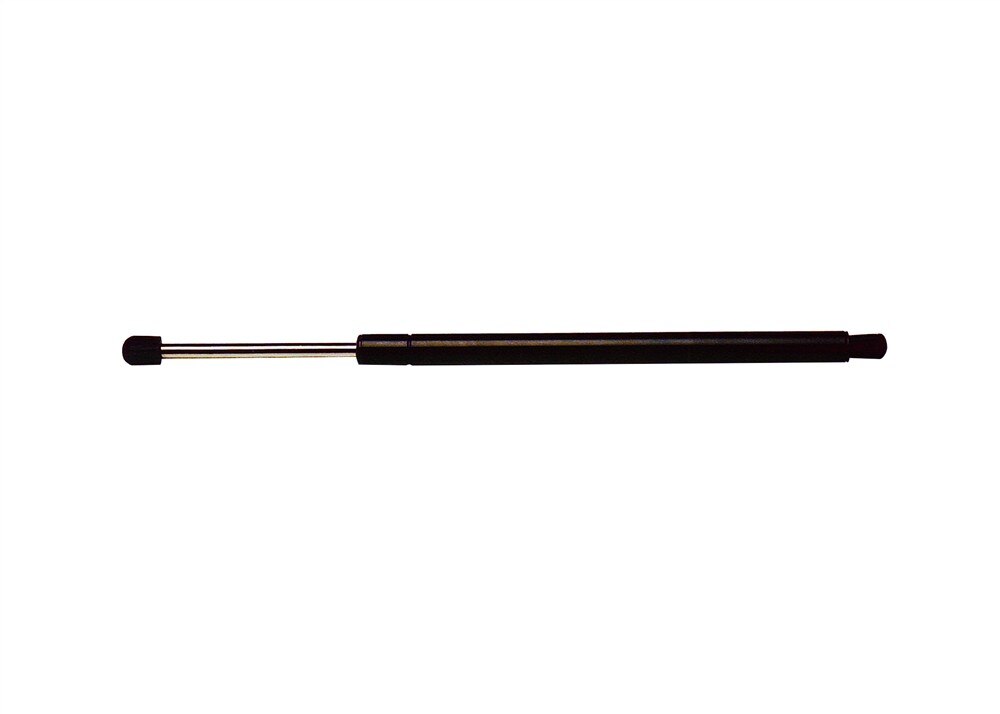

ACDelco Gold Hood Lift Support
Gold
Pack of 1

ACDelco Gold Hood Lift Support

GM Part #12362160

ACDelco Part #510-326

MSRP$118.87*

ACDelco Professional Lift Supports are the ideal replacements for your worn out lift support struts.

  • High quality seals keep lift support fluids and gases contained within the strut components, resulting in extended product life
  • Chromed rod increases rust and corrosion resistance for a higher quality, longer lasting, lift support
  • Rubber O-ring piston seal for controlled lift

Pack of 1

About this product

ACDelco Professional Lift Supports are the ideal replacements for your worn out lift support struts. The pressurized, gas charged cylinders feature chromed rods and superior seals for a lasting, quality lift support replacement. Each lift support is custom engineered and manufactured to top industry standards with self-cleaning piston technology and a patented multi-lobe sealing system. ACDelco Professional Lift Supports are easy to install with simple hand tools in just minutes.

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • High quality seals keep lift support fluids and gases contained within the strut components, resulting in extended product life
  • Chromed rod increases rust and corrosion resistance for a higher quality, longer lasting, lift support
  • Rubber O-ring piston seal for controlled lift
  • Heavy gauge steel pressure tube provides long life
  • Polytetrafluroethylene (PTFE) backup ring gives enhanced performance
  • Patented multi-lobe seal offers improved leak protection and long life
  • Self-cleaning piston assembly delivers smooth operation and consistent performance

Universal Or Specific FitSpecific
Outer Cylinder MaterialSteel
Dampening TypeGas
Outer Cylinder ColorBlack
End 2 TypeBall Socket
End 1 TypeBall Socket
Inner Shaft Diameter0.394 in / 10 mm
ClassificationGold
Compressed Length19.13 in / 485.9 mm
Maximum Force89 lb / 40.3 kg
Minimum Force139 kg / 307 lb
Extended Length32.13in
Cylinder Outside Diameter22mm
End 1 MaterialNylon
Stroke Length13.0in
End 2 MaterialNylon

24 Months/Unlimited Miles Limited Warranty for Parts (plus Labor if installed by a GM dealer)

Please visit our warranty page on Gmparts.com for full warranty details.

It is recommended to replace your lift supports in pairs to ensure the performance and safety of the related component, such as your hood, hatchback, or liftgate.

  • Periodically clean the surface of the rod with a dry, soft cloth.
  • Do not use oil, silicone, adhesives, or anything that might leave a sticky residue on the rod, which could ultimately attract dust or dirt.
  • Avoid anything that could scratch the rod, such as clamps or clips.
  • Avoid abrasive household cleaners, as they can scratch the rod as well.

ModelBody StyleTrimYear(s)
Corvette1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996

Frequently Asked Questions

Yes. To achieve maximum product performance and service life, it is recommended to mount your lift strut 'shaft down'
