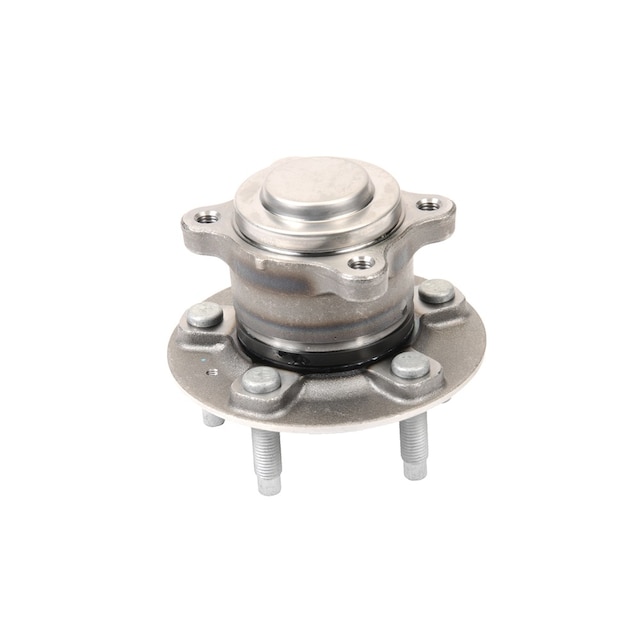

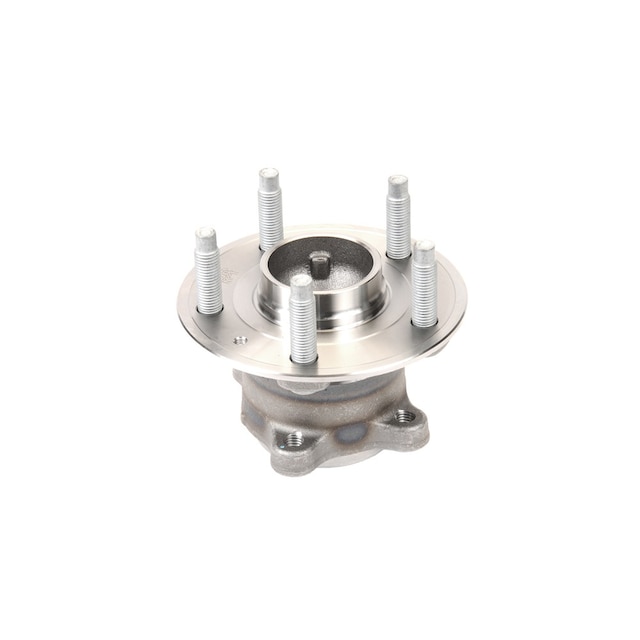

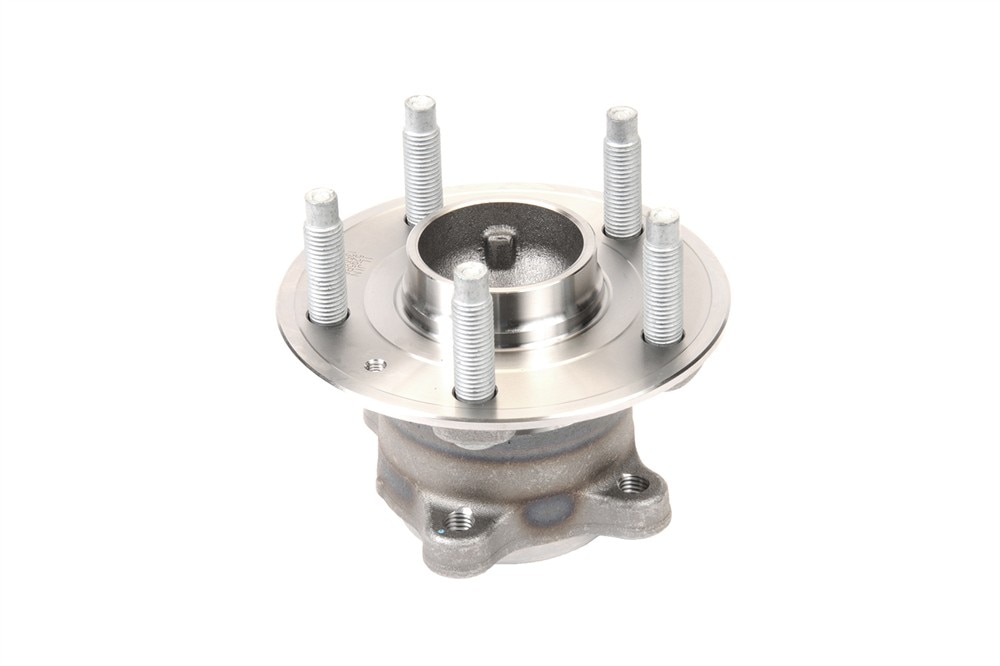

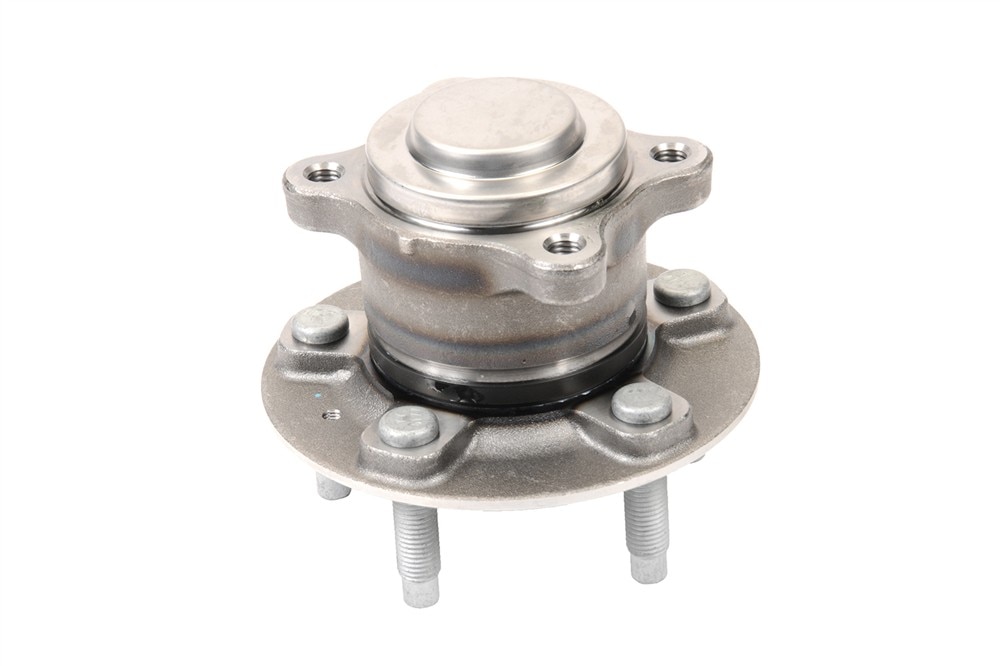

ACDelco GM Original Equipment Rear Wheel Bearing
OE
Pack of 1

ACDelco GM Original Equipment Rear Wheel Bearing

GM Part #13593158

ACDelco Part #RW20-164

MSRP$189.20*

ACDelco GM Original Equipment Wheel Bearings allow the wheel to rotate with minimal friction, and are GM-recommended replacements for your vehicle's original components.

  • Allows the wheel to rotate with minimal friction
  • Supports the weight of the vehicle
  • Maximum lateral stiffness for optimum ride, handling, and driving dynamics

Pack of 1

About this product

ACDelco GM Original Equipment Wheel Bearings allow the wheel to rotate with minimal friction, and are GM-recommended replacements for your vehicle's original components. Wheel bearings support the weight of the vehicle and are lubricated with axle oil or wheel bearing grease. These original equipment wheel bearings have been manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors.

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • Allows the wheel to rotate with minimal friction
  • Supports the weight of the vehicle
  • Maximum lateral stiffness for optimum ride, handling, and driving dynamics
  • GM OE parts are built to help withstand potholes and designed to maximize seal life
  • GM OE bearing designs are dimensionally optimized to work with their mating parts
  • GM-recommended replacement part for your GM vehicle's original factory component
  • Offering the quality, reliability, and durability of GM OE
  • Manufactured to GM OE specification for fit, form, and function

Width4.78 in / 121.38 mm
Flange IncludedYes
Weight6.9lb
Flange Diameter5.35 in / 136 mm
Outside Diameter5.35 in / 136 mm
ClassificationOE
Wheel Pilot Diameter2.36 in / 60 mm
Wheel Stud Size0.47 in / 12 mm
Flange Bolt Hole Diameter0.39 in / 10 mm
Flange Offset2.01 in / 51 mm
Wheel Studs IncludedYes
Anti Lock Braking SystemYes
Wheel Stud Quantity5
Anti Lock Braking System TypeEncoder
Flange Bolts IncludedNo
Flange ShapeRectangular
Flange Bolt Hole Quantity4
Brake Pilot Diameter5.35 in / 136 mm
Bearing TypeBall

Limited Lifetime Warranty for Parts (plus Labor if installed by a GM dealer)

Please visit our warranty page on Gmparts.com for full warranty details.

Good Maintenance Practices:

  • Be sure to have the bearing properly aligned when pressing it into the spindle assembly and do not overtighten center hub bearing to constant velocity shaft nut.
  • Follow the manufacturers recommended torque specification.

Signs of wear for wheel bearings include but are not limited to:

  • Grinding or humming noise from bearing assembly maybe more noticeable while turning
  • Tire and wheel vibration
  • Excessive play at tire and wheel
  • Wheel hot to the touch

ModelBody StyleTrimYear(s)
EncoreBase2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
