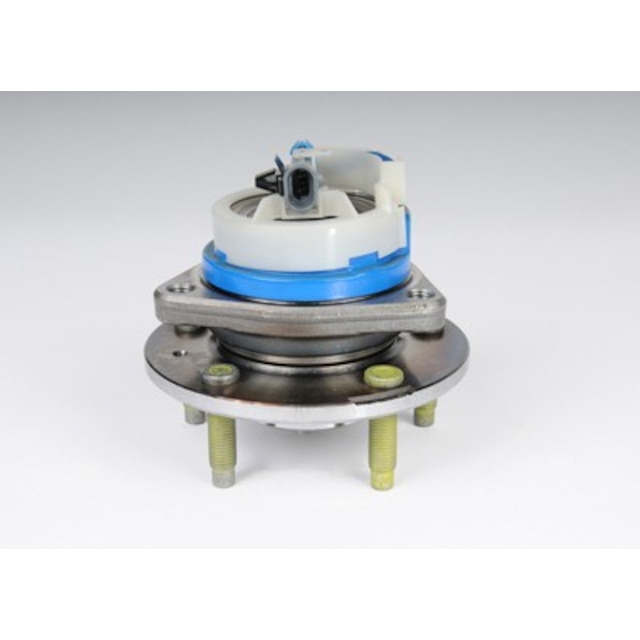

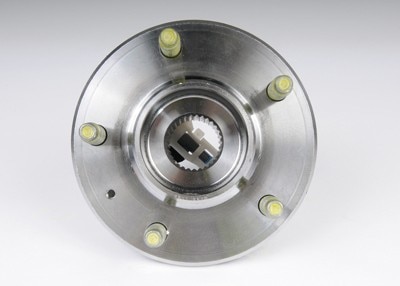

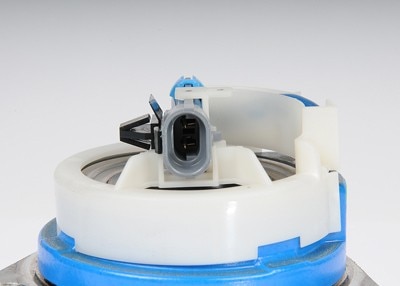

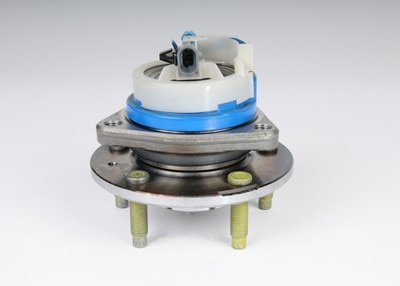

Name: ACDelco GM Original Equipment Front Wheel Hub and Bearing Assembly with Wheel Speed Sensor
Price: 484.96 USD

About this product

ACDelco GM Original Equipment Wheel Hubs provide the attaching point for the brake rotor and road wheel, and are GM-recommended replacements for your vehicle's original components. These wheel hubs are supported and allowed to rotate by the wheel bearing. These original equipment wheel hubs have been manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors.

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Provides the attaching point for the brake rotor and road wheel
Supported and allowed to rotate by the wheel bearing
GM OE bearing designs are dimensionally optimized to work with their mating parts
GM-recommended replacement part for your GM vehicle's original factory component
Offering the quality, reliability, and durability of GM OE
Manufactured to GM OE specification for fit, form, and function

Wheel Pilot Diameter2.75984252 in / 70.1 mm

ClassificationOE

Brake Pilot Diameter70.6mm

Flange Offset1.661 in / 42.2 mm

Flange Diameter145.5mm

Wheel Stud Size12mm

Flange Bolts IncludedYes

Anti Lock Braking SystemYes

Integrated Hub UnitYes

Flange Bolt Hole Quantity5

Flange ShapeRound

Anti Lock Braking System TypeSensor

Wheel Studs IncludedYes

Flange Bolt Hole Diameter12.42mm

Hub Pilot Diameter2.75984252 in / 70.1 mm

Spline Quantity30

Wheel Stud Quantity5

Wheel Pilot Diameter2.75984252 in / 70.1 mm

Brake Pilot Diameter70.6mm

Flange Diameter145.5mm

Flange Bolts IncludedYes

Integrated Hub UnitYes

Flange ShapeRound

Wheel Studs IncludedYes

Hub Pilot Diameter2.75984252 in / 70.1 mm

Wheel Stud Quantity5

ClassificationOE

Flange Offset1.661 in / 42.2 mm

Wheel Stud Size12mm

Anti Lock Braking SystemYes

Flange Bolt Hole Quantity5

Anti Lock Braking System TypeSensor

Flange Bolt Hole Diameter12.42mm

Spline Quantity30

Limited Lifetime Warranty for Parts (plus Labor if installed by a GM dealer)

Please visit our warranty page on Gmparts.com for full warranty details.

Good Maintenance Practices:

Tighten the wheel hub axle nut to recommended specs, overtightening may cause premature wear to the hub assembly
Do not operate vehicle with a worn wheel hub assembly
For bearings that are bolted onto knuckles, apply GM-recommended grease between bearing knuckle pilot and knuckle bore for easy of future removal. Take special care to avoid getting grease in the threads.

Signs of wear for wheel hubs include but are not limited to:

Grinding when the vehicle is in motion
Knocking or clunking
Humming, rumbling, squealing, roaring or growling
Looseness
ABS, Traction control, Stability control light.
Wheel vibration and/or wobble

Model	Body Style	Trim	Year(s)
STS		Base, Platinum	2005, 2006, 2007, 2008, 2009, 2010, 2011

About this product

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Provides the attaching point for the brake rotor and road wheel
Supported and allowed to rotate by the wheel bearing
GM OE bearing designs are dimensionally optimized to work with their mating parts
GM-recommended replacement part for your GM vehicle's original factory component
Offering the quality, reliability, and durability of GM OE
Manufactured to GM OE specification for fit, form, and function

Wheel Pilot Diameter2.75984252 in / 70.1 mm

ClassificationOE

Brake Pilot Diameter70.6mm

Flange Offset1.661 in / 42.2 mm

Flange Diameter145.5mm

Wheel Stud Size12mm

Flange Bolts IncludedYes

Anti Lock Braking SystemYes

Integrated Hub UnitYes

Flange Bolt Hole Quantity5

Flange ShapeRound

Anti Lock Braking System TypeSensor

Wheel Studs IncludedYes

Flange Bolt Hole Diameter12.42mm

Hub Pilot Diameter2.75984252 in / 70.1 mm

Spline Quantity30

Wheel Stud Quantity5

Wheel Pilot Diameter2.75984252 in / 70.1 mm

Brake Pilot Diameter70.6mm

Flange Diameter145.5mm

Flange Bolts IncludedYes

Integrated Hub UnitYes

Flange ShapeRound

Wheel Studs IncludedYes

Hub Pilot Diameter2.75984252 in / 70.1 mm

Wheel Stud Quantity5

ClassificationOE

Flange Offset1.661 in / 42.2 mm

Wheel Stud Size12mm

Anti Lock Braking SystemYes

Flange Bolt Hole Quantity5

Anti Lock Braking System TypeSensor

Flange Bolt Hole Diameter12.42mm

Spline Quantity30

Limited Lifetime Warranty for Parts (plus Labor if installed by a GM dealer)

Please visit our warranty page on Gmparts.com for full warranty details.

Good Maintenance Practices:

Tighten the wheel hub axle nut to recommended specs, overtightening may cause premature wear to the hub assembly
Do not operate vehicle with a worn wheel hub assembly
For bearings that are bolted onto knuckles, apply GM-recommended grease between bearing knuckle pilot and knuckle bore for easy of future removal. Take special care to avoid getting grease in the threads.

Signs of wear for wheel hubs include but are not limited to:

Grinding when the vehicle is in motion
Knocking or clunking
Humming, rumbling, squealing, roaring or growling
Looseness
ABS, Traction control, Stability control light.
Wheel vibration and/or wobble

Model	Body Style	Trim	Year(s)
STS		Base, Platinum	2005, 2006, 2007, 2008, 2009, 2010, 2011
